Collaboration and Coordination in Multi-Agent Systems

1. Introduction

Effective cooperation and coordination are essential for multi-agent systems to function well. When several agents collaborate, they share resources and information in order to maximize their overall performance while working towards a shared goal. Contrarily, coordination describes the processes that guarantee agents’ actions are matched and synced to prevent conflicts and redundancy, guaranteeing the effective accomplishment of goals. Agents in a well-coordinated multi-agent system (MAS) can communicate plans and states, assign tasks dynamically, and modify their behaviour in response to other agents’ activities. When MAS collaborates and coordinates well, it may accomplish tasks that single-agent systems would find impossible or extremely inefficient. This study explores the evolution, central ideas, and real-world applications of cooperation and coordination within MAS, delving into its theoretical underpinnings and practical applications.

2. Communication Types

Effective collaboration and coordination in multi-agent systems (MAS) rely heavily on communication. The norms and procedures by which agents share information are defined by communication protocols, guaranteeing the purpose and effectiveness of their interactions. In MAS, agents primarily communicate via common data repositories, broadcasting, and direct messaging.

2.1 Broadcasting

By using a communication technique called broadcasting, every agent in the system can receive a message issued by any other agent. When information is pertinent to several agents or the sender is unclear which agents in particular want the information, this approach can be helpful. In the event that a swarm of drones is engaged in a search and rescue mission, for instance, a drone detecting a victim can notify all other drones of their location so that the closest ones can come to their aid.

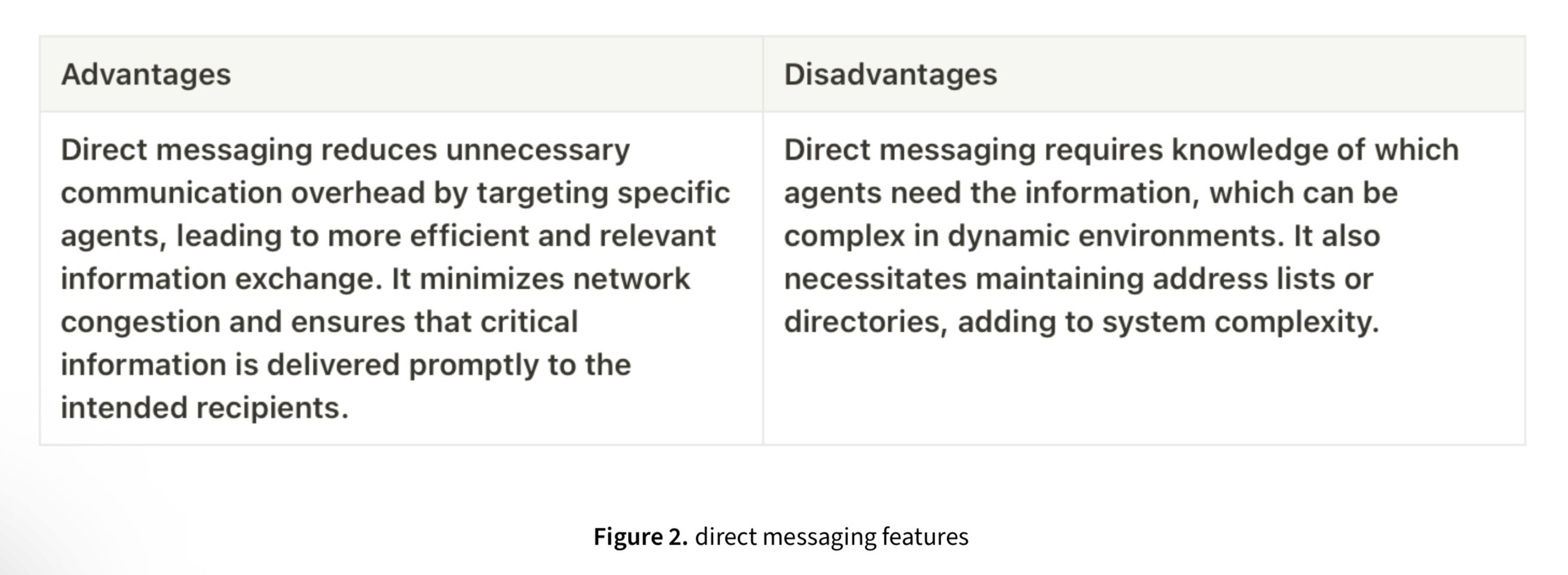

2.2 Direct Messaging

Direct messaging involves sending information from one agent to a specific target agent or a small group of agents by specifying the recipient(s) of the message. This method is more controlled and focused compared to broadcasting and is analogous to a phone call or an email where communication is targeted and private.

Example: In a multi-agent logistics system, an agent responsible for inventory management might directly message the transportation scheduling agent with updates about stock levels.

2.3 Publish-Subscribe Systems

Agents post information on a topic and other agents subscribe to topics they find interesting in a publish-subscribe system. All subscribers receive immediate updates whenever new content is released.

• Event Bus: An agent-to-agent communication channel where agents post events and subscribe to get alerts when certain events happen.

• Middleware Platforms: Systems that facilitate publish-subscribe patterns, such as MQTT or Apache Kafka, guarantee scalable and effective information dissemination.

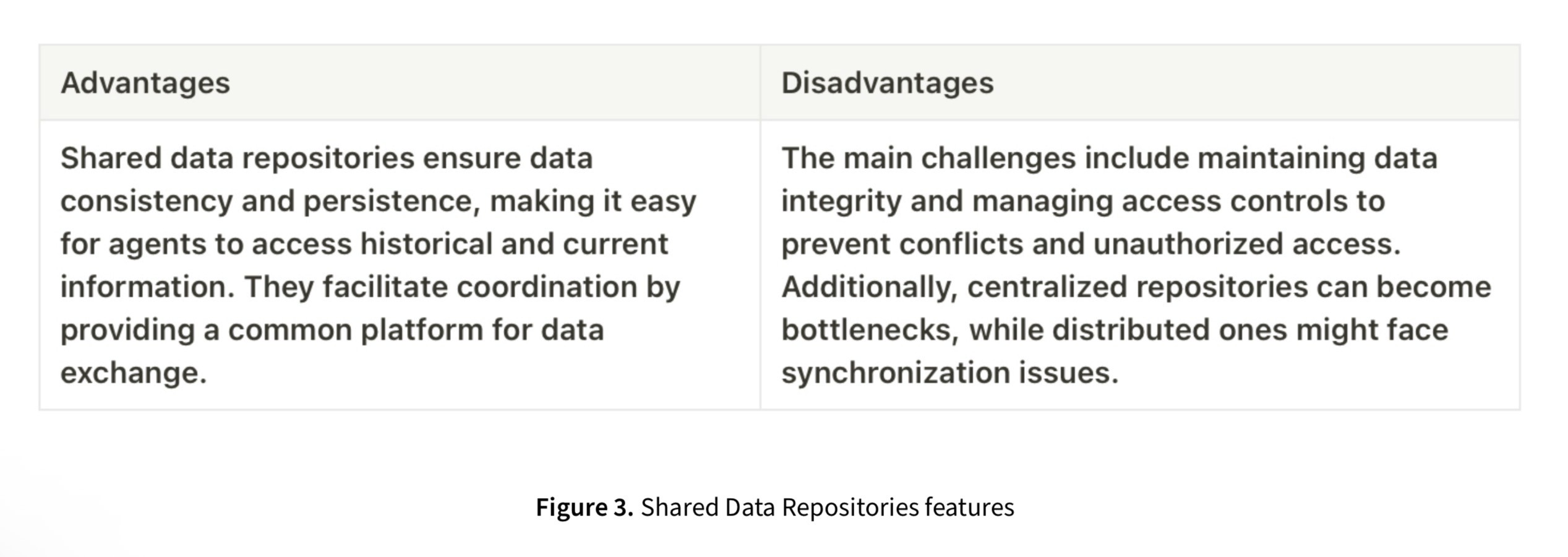

2.4 Shared Data Repositories

Shared data repositories involve a common data storage area that all agents can access to read or write information. This method is particularly useful for maintaining a consistent and up-to-date shared knowledge base. In this method, agents use a centralized or distributed database where they can store and retrieve information.

1. Blackboard Systems: A central repository where agents post information. Other agents can read and contribute to this repository, allowing for asynchronous communication.

2. Distributed Shared Memory: A virtual memory space that appears shared but is physically distributed across multiple locations. This method helps in scaling the system without central bottlenecks.

Example: A shared Google Drive or a corporate database where all employees can access relevant documents and data.

3. Communication Protocols

To facilitate effective communication among agents, several standardized protocols have been developed. Two of the most widely used protocols in multi-agent systems are the Knowledge Query and Manipulation Language (KQML) and the Foundation for Intelligent Physical Agents - Agent Communication Language (FIPA-ACL).

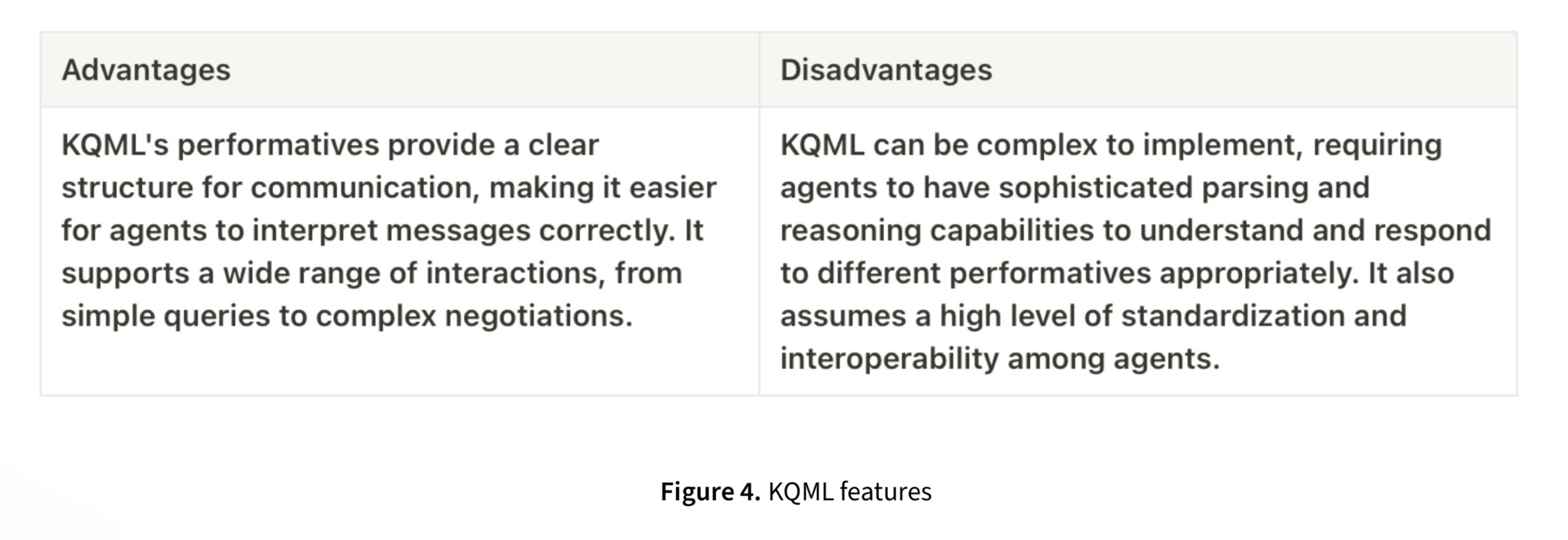

3.1 Knowledge Query and Manipulation Language (KQML)

Software agents and knowledge-based systems can communicate with each other using the KQML language and protocol. It is intended to facilitate communication in dispersed artificial intelligence systems by offering a standard for message exchange.

The content layer and the communication layer are the two layers at which KQML functions. The communication layer specifies the performative (or speaking act), such as ask, tell, achieve, etc., that reveals the intention behind the message, whereas the content layer contains the actual information or query. For instance, an agent can use KQML to request information from another agent, notify another agent of a fact, or instruct another agent on what to do.

Information Retrieval Systems: KQML is used in information retrieval to allow agents to query databases and obtain pertinent data. KQML, for instance, can be used by a research assistant agent to query a bibliographic database for scholarly articles on a certain subject.

• Industrial Automation: KQML is used in industrial automation to provide communication between various sensors and control systems. For example, a scheduling agent in a manufacturing plant can utilize KQML to ask machine agents for status updates and modify production schedules accordingly. This guarantees that the production process as a whole is optimized and adaptable to changes in real time.

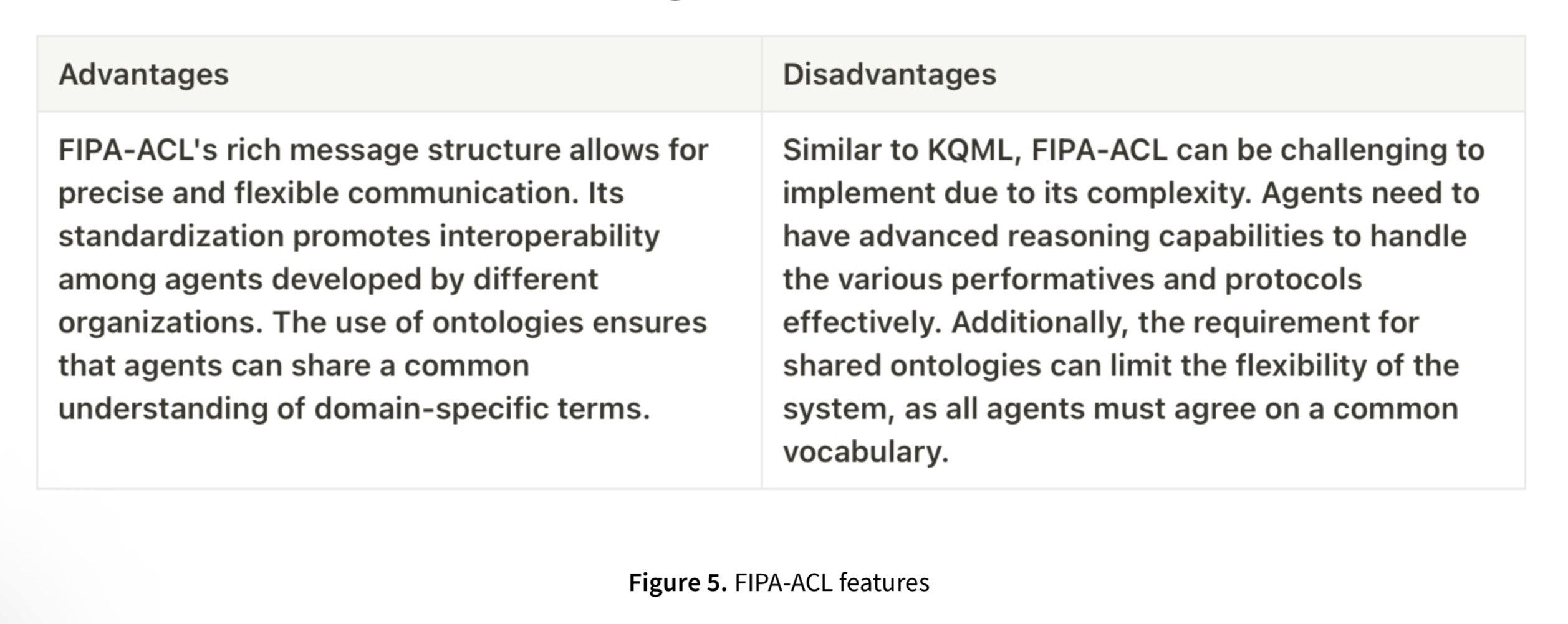

3.2 Foundation for Intelligent Physical Agents - Agent Communication Language (FIPA-ACL)

The Foundation for Intelligent Physical Agents (FIPA) has established a standardized language for agent communi-cation called FIPA-ACL. It offers a thorough foundation for interactions between diverse agents. Multiple fields make up FIPA-ACL messages: performative, sender, receiver, content, language, ontology, and protocol. The performative denotes the kind of communication act—inform, request, query, etc.—that is being performed. The language used in the content is specified in the ontology field, guaranteeing that the sender and the recipient have the same understanding of the terms.

FIPA-ACL in Practice

• Robotics: FIPA-ACL is used in robotics to coordinate several robots in a same environment. Robots at a warehouse, for instance, communicate about their locations and tasks and negotiate task assignments using FIPA-ACL. When a robot recognizes a barrier, it can use the ’inform’ feature to alert other robots so they can avoid colliding.

• E-Commerce: FIPA-ACL gives agents the ability to handle transactions and negotiate contracts in e-commerce. To seek a price quote for a product from a seller agent, a buyer agent might use the’request’ function. In response, the seller’s agent provides a "informative" performance that includes the price. The buyer agent then has the option to use more FIPA-ACL performatives to negotiate or accept the offer.

3.3 Comparison and Integration

Both FIPA-ACL and KQML are strong MAS communication protocols, however they have different features and uses. Because of its more adaptable performative structure, KQML can be used for a variety of interactions. FIPA-ACL is perfect for systems that need accurate and interoperable communication because of its standardized message structure and ontology support.

The advantages of both protocols can be combined by integrating them into a single MAS. For instance, in a large-scale logistics system, tactical agents can coordinate their operations using FIPA-ACL, while strategic agents can plan and negotiate at a higher level using KQML. The system’s overall robustness and efficiency can be improved with this hybrid method.

4. Knowledge Representation Systems

In order to guarantee that agents inside a multi-agent system (MAS) can retrieve, exchange, and comprehend shared data, efficient knowledge representation and storage are essential. This capacity is essential for smooth coordination and communication amongst agents. In MAS, knowledge is represented and stored using a variety of methods, each with special benefits and uses.

4.1 Ontologies

Ontologies define concepts, connections, and categories and offer a formal representation of knowledge within a domain. They make it possible for agents to comprehend the domain together.

Description Logics

A formal and systematic method of representing knowledge, description logics are a class of logics used to create ontologies. They offer the framework for deducing ideas and how they relate to one another within a domain. An example of an ontology in the medical sector would have terms like "Disease," "Symptom," and "Treatment." We may define relationships like "Hypertension is a disease" and "Hypertension has a symptom of high blood pressure" thanks to description logics. Diagnostic agents can better comprehend and analyze patient data with the aid of this organized depiction.

OWL (Web Ontology Language)

The standard language for building and exchanging ontologies on the internet is OWL. It gives disparate systems a standard foundation for representing knowledge, which makes interoperability easier. As an illustration, let’s develop an OWL ontology for an online store:

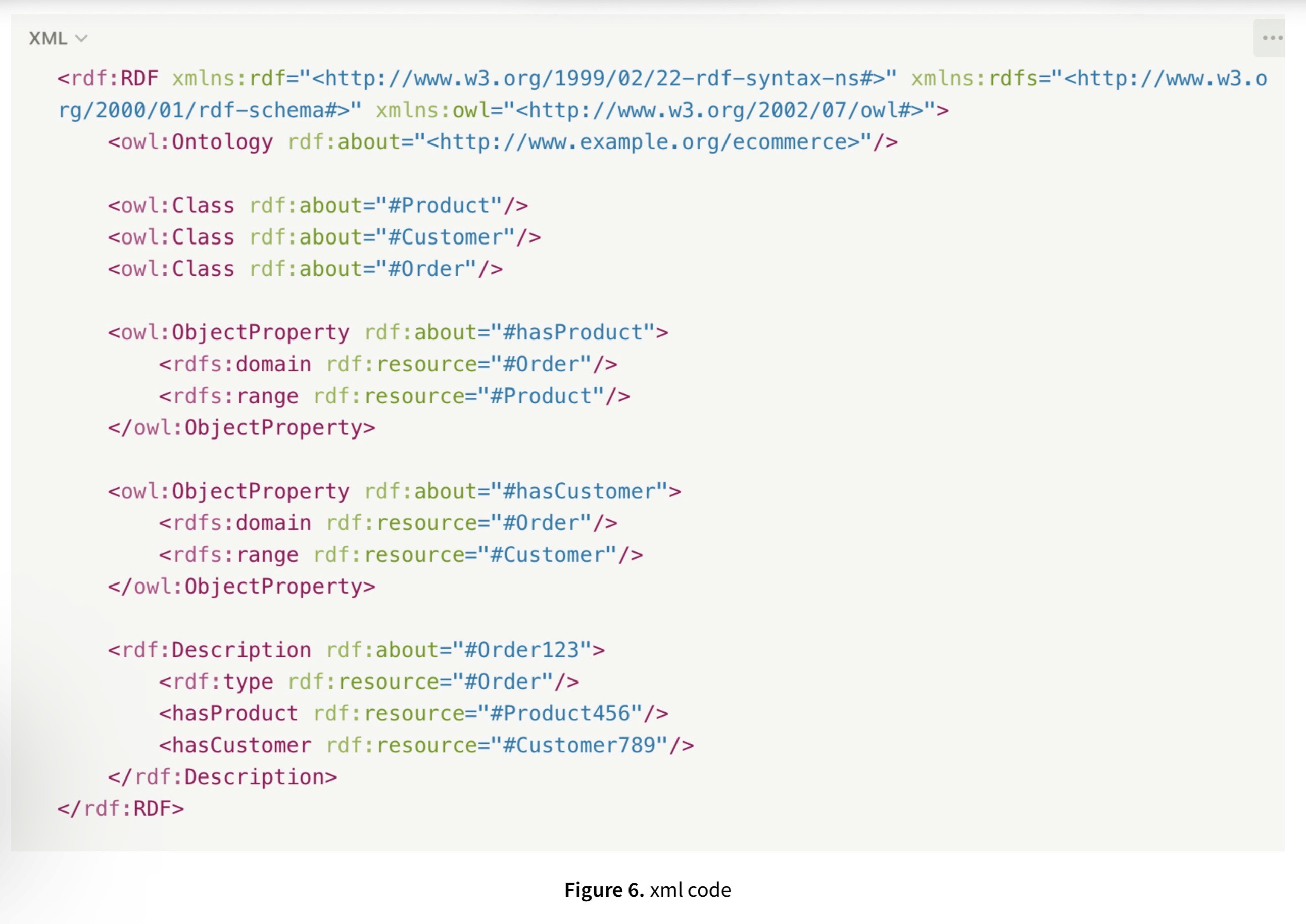

In the above code example, we define an ontology for an e-commerce system with three classes: Product, Customer, and Order. We also define properties such as hasProduct and hasCustomer to establish relationships between these classes. An instance of an order (Order123) links to a specific product (Product456) and customer (Customer789).

4.2 Knowledge Graphs

Knowledge is shown as a network of entities and their relationships in knowledge graphs. They can simulate intricate interactions and are incredibly adaptable.

Edges and Nodes

Description: Nodes in a knowledge graph are representations of entities like people, things, or concepts. A graph structure is formed by the relationships between these items, which are represented as edges. As an illustration, consider a social media message assistant (MAS) where nodes stand for users, posts, and hashtags, and edges for associations like "likes," "follows," and "tags." As an illustration, User A (node) likes (edges) a post made by User B (node). Agents are able to examine social interactions and patterns because to this structure.

Resource Description Framework (RDF)

Knowledge graphs are made using RDF, a common format for data transfer on the web. Subject-predicate-object triples, or RDF representations of information, allow for the clear and organized representation of knowledge. For instance: Think about a library MAS:

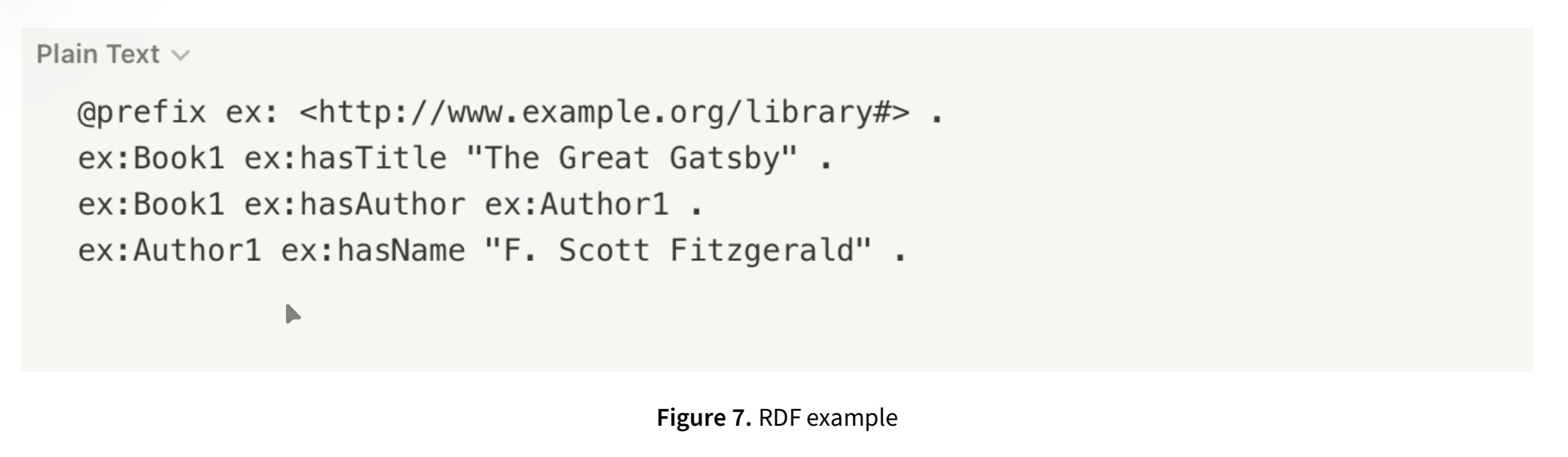

In this RDF example, we represent that a book titled "The Great Gatsby" has an author named "F. Scott Fitzgerald". The RDF triples are Book1 hasTitle "The Great Gatsby", Book1 hasAuthor Author1, and Author1 hasName "F. Scott Fitzgerald".

4.3 Semantic Networks

Semantic networks represent knowledge as a network of interconnected concepts. They are useful for representing hierarchical relationships and conceptual dependencies.

Concept Nodes

Description: In a semantic network, each node represents an individual concept or entity.

Example: In an educational MAS, a semantic network might represent the relationships between different topics in a curriculum.

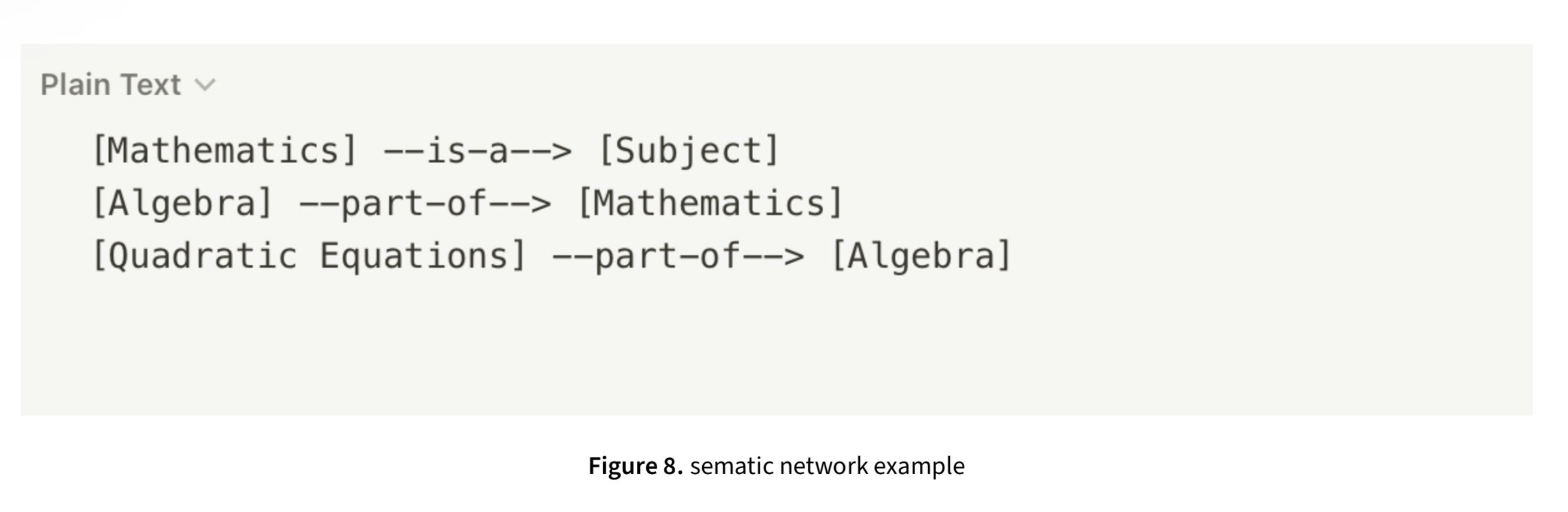

In the example below, "Mathematics" is a subject, "Algebra" is a type of mathematics, and "Quadratic Equations" are a part of algebra. This helps educational agents generate personalized learning paths by understanding the hierarchical structure of subjects.

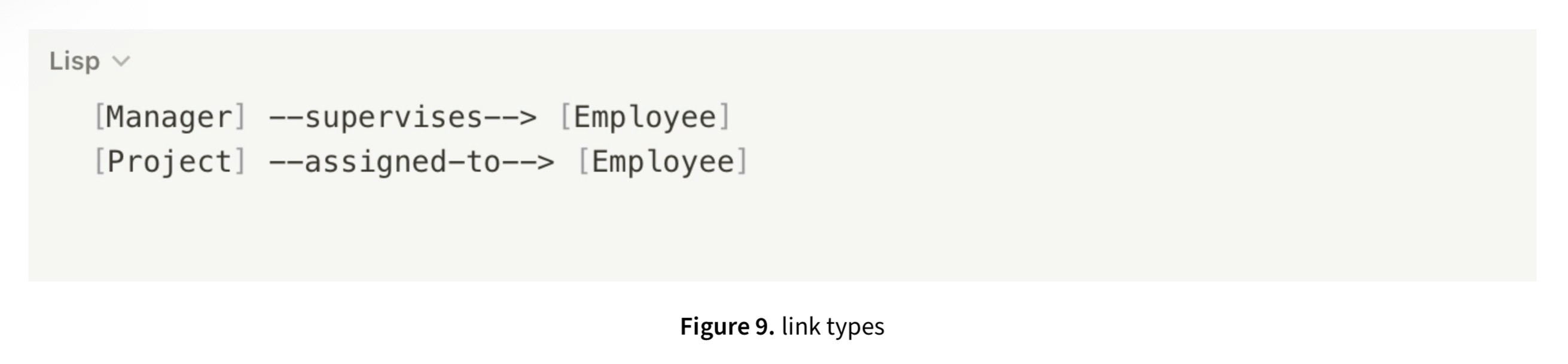

Link Types

Description: Different types of links represent various relationships between concepts, such as "is-a" (subclass relationship) and "part-of" (component relationship).

Example: In a corporate knowledge management system:

This structure helps agents understand organizational hierarchies and workflows, enabling efficient task assignments and project management.

Frame-Based Systems

Frame-based systems represent knowledge using frames, which are data structures that capture stereotypical situations. Each frame contains slots (attributes) and values, defining the properties of an entity.

Frames

Description: Frames are structures representing entities or situations, similar to objects in object-oriented programming.

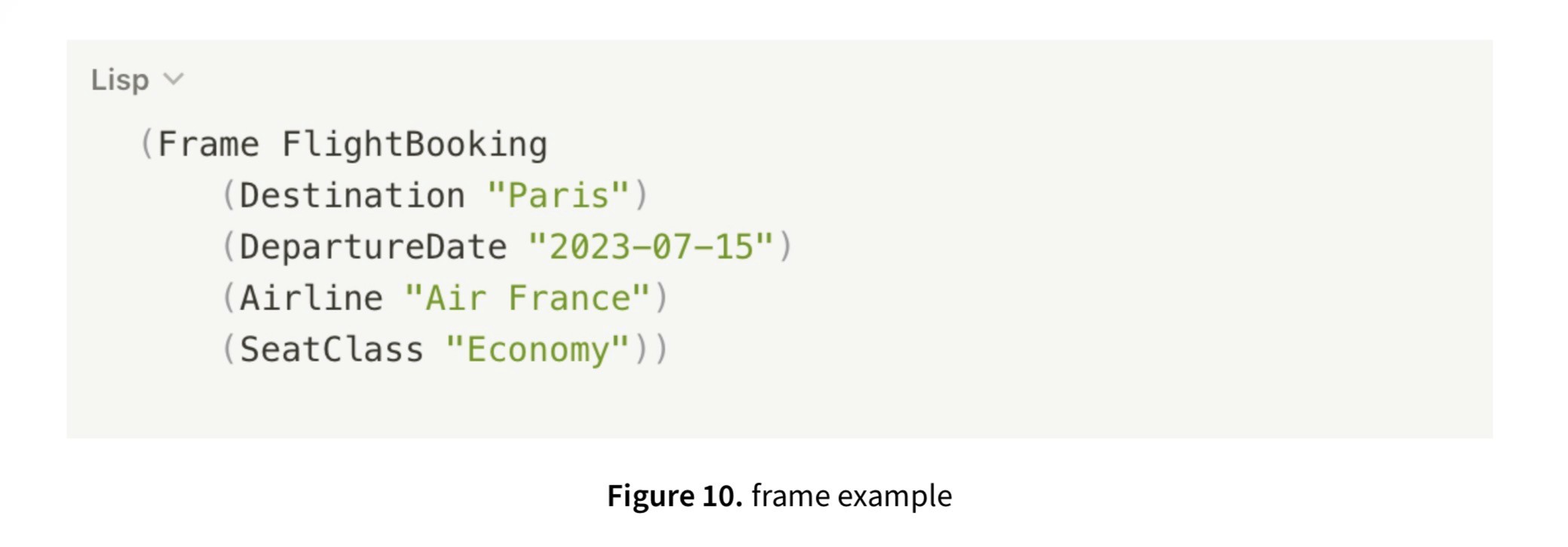

Example: In a travel planning MAS, a "FlightBooking" frame might include slots for "Destination," "DepartureDate,” "Airline," and "SeatClass."

Slots

Description: Slots are attributes or properties of frames, containing values or references to other frames.

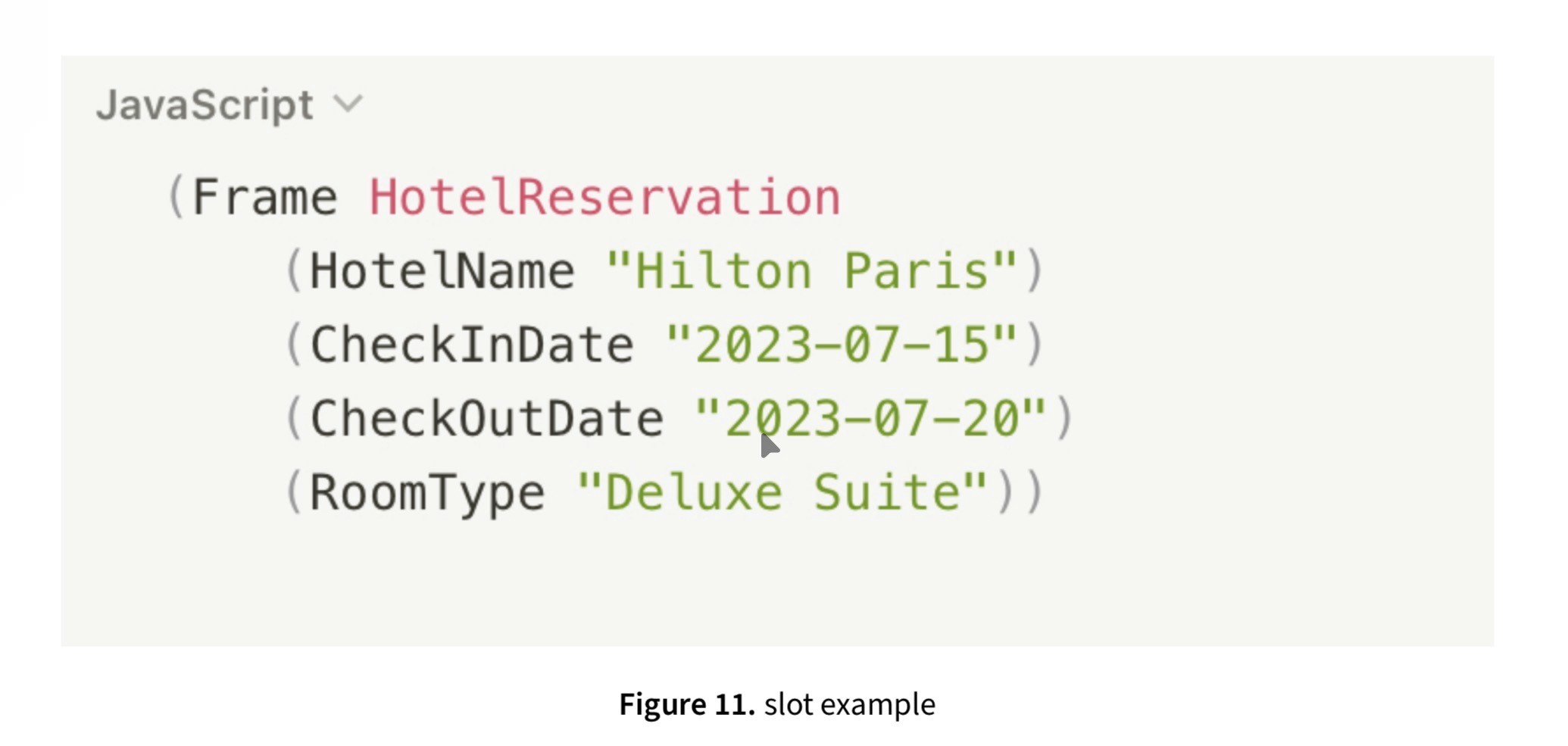

Example: The "HotelReservation" frame might have slots for "HotelName," "CheckInDate," "CheckOutDate," and "RoomType."

In summary, successful knowledge representation and storage are essential to the success of machine learning. Agents are able to communicate, coordinate, and make decisions with the use of organized methods for representing and sharing knowledge, such as those found in ontologies, knowledge graphs, semantic networks, and frame-based systems. Depending on the particular requirements and complexity of the domain in which the MAS functions, many techniques might be chosen, each offering distinct advantages.

5. Collaboration Strategies

In multi-agent systems (MAS), successful cooperation depends on a variety of tactics that determine how agents cooperate to accomplish goals. These tactics fall into three general categories: mixed-motive, competitive, and cooperative tactics. Every strategy has distinct qualities, benefits, and uses based on the objectives and MAS environment.

5.1 Joint Goals and Shared Rewards

Agents that use cooperative tactics share knowledge, resources, and rewards as they cooperate to achieve a common objective. These tactics place a strong emphasis on cooperation, supporting one another, and group achievement.

Example: Several autonomous vehicles (AGVs) work together in a warehouse to move items from one place to another. They exchange route information, minimizing collisions and maximizing their routes to guarantee on-time delivery.

5.2 Independent Goals and Conflicting Interests

In competitive strategies, agents have independent goals and may have con￿icting interests. These strategies are characterized by competition, negotiation, and strategic behavior.

Analysis of Scenarios Where Agents Have Competitive Interactions

• Financial Markets

Trading agents compete in the financial markets to acquire and sell assets in order to maximize their earnings. Based on risk tolerance, investing objectives, and market research, each agent has a unique approach. They compete to execute trades at the best timing and prices.

Benefits: Efficiency and liquidity are driven by competitive strategies in the financial markets. Better price discovery and more dynamic market behaviour that reflects supply and demand in real time are the results of agent competition.

• Allocation of Resources

Several service providers compete to supply clients with computer resources in cloud computing. By offering exceptional service quality and competitive price, providers hope to increase their clientele and revenue.

Advantages: Strategies for allocating resources that are competitive encourage efficiency and creativity. In order to draw in and keep customers, providers are encouraged to enhance their offerings and streamline their business processes.

• Auction-Based Systems

Auction methods are used by both buyers and sellers in online markets to compete for products. Whereas consumers look for the best offers, sellers want to get the best price. The final pricing and the auction process are determined by the competition.

Advantages: Strategies based on competitive auctions provide equitable market pricing and effective distribution of goods. Because auctions are competitive, participants are more likely to bid according to their genuine valuations, which produces the best results.

5.3 Mixed-Motive Strategies: Combination of Cooperative and Competitive Elements

Agents using mixed-motive strategies combine cooperation with competition; they may cooperate in certain areas while engaging in competition in others. These tactics acknowledge the possibility of actors having competing as well as cooperative interests.

• Collaborative Filtering in Recommender Systems

Example: Recommendation agents in e-commerce systems make product recommendations to users based on collaborative filltering. Agents compete to offer the most pertinent recommendations in order to increase user engagement and sales, even as they collaborate by exchanging user preference data to improve recommendations.

Benefits: In recommender systems, mixed-motive strategies take advantage of the advantages of both competition and cooperation. The total quality of suggestions is enhanced by shared data, and agents are incentivized to provide the greatest user experience through competition.

• Supply Chain Management

Example: To guarantee the efficient flow of commodities, several businesses (suppliers, producers, and distributors) collaborate in supply chain management. They contend, nevertheless, in an effort to increase their own revenue and market share. To improve inventory management, for example, suppliers could exchange production schedules, but they compete on terms of delivery and price.

Benefits: Operations in supply chains with mixed motivations are more robust and effective. Competition spurs creativity and cost-effectiveness, while cooperation maintains the seamless operation of the supply chain.

• Smart Grid Systems

Example: energy providers work together in smart grid systems to balance supply and demand throughout the system. But they also fight for clients by providing excellent service and reasonable prices. While competing on market terms, providers exchange data about energy output and use to maintain grid stability.

Benefits: In smart grids, mixed-motive techniques improve consumer satisfaction and overall grid reliability. While competition pushes suppliers to deliver better services and rates, cooperation assures a steady and effective energy supply.

Conclusion

Cooperative, competitive, and mixed-motive techniques are examples of collaboration tactics in multi-agent systems. Cooperative tactics encourage productivity and support among participants by concentrating on common objectives and benefits. In order to drive innovation and market dynamics, competitive strategies entail autonomous aims and competing interests. Competitiveness and cooperation are balanced by mixed-motive tactics, which combine their advantages to get the best results. Through comprehension and execution of these tactics, MAS may successfully tackle intricate problems and improve system efficiency in a range of uses.

6. Mechanisms of Collaboration

6.1 Task Division and Allocation

Task division and assignment is the first step towards effective coordination in multi-agent systems (MAS). Using this approach, a complex work is divided into smaller, more manageable subtasks, which are then assigned to agents according to their availability and skills. Allocating and dividing up tasks is essential to enhancing system performance, guaranteeing best use of resources, and accomplishing overall goals.

1. Hierarchical Task Decomposition

A complicated task can be divided into a hierarchy of smaller tasks, each with varying levels of granularity, using a process known as hierarchical task decomposition. Higher-level activities are broken down into more manageable chunks by smaller, more focused tasks until they are at the level of each agent.

Example: The entire task of rescue operations in a disaster response situation can be broken down into smaller activities like search and rescue, logistics, and medical assistance. Every subtask can be further divided into discrete tasks, such as delivering supplies, conducting a targeted search, and administering first assistance.

Benefits: This approach guarantees that tasks are doable and well stated. It gives agents a defined framework to work inside, making coordination easier and lowering the possibility of overlap or repetition.

2. Functional Decomposition

Tasks are divided using functional decomposition according to the various roles or functions needed to accomplish the main goal. Specialized agents with the necessary resources and skills handle each function.

Example: The total task of producing a product in a manufacturing plant can be broken down into departments like design, assembly, quality control, and packaging. Agents with specific expertise in certain fields are allocated to each function.

Benefits: By utilizing the unique abilities of agents, functional decomposition guarantees that the most appropriate agent completes each assignment. This method matches jobs to the agents who are most qualified to complete them, improving both quality and efficiency.

3. Spatial Decomposition

Spatial decomposition involves dividing tasks based on the geographical or spatial distribution of the work. This method is particularly useful in scenarios where tasks are spread over a large area.

Example: In precision agriculture, the overall task of crop monitoring can be divided into different fields or sections of a farm. Each section is assigned to a specific drone or sensor, which collects data and performs analysis.

Benefits: Spatial decomposition ensures that tasks are geographically organized, reducing travel time and resource usage. It enables agents to focus on specific areas, improving coverage and detail in their work.

6.2 Techniques for Matching Tasks to the Most Suitable Agents

1. Capability Matching

The process of assigning tasks to agents according to their resources, knowledge, and abilities is known as capability matching. Every assignment is paired with an agent who has the skills required to complete it successfully.

As an illustration, in a software development project, developers are given coding, testing, and documentation responsibilities according to their particular areas of expertise and experience. Developing test cases and carrying out quality assurance would fall to a developer with a lot of testing knowledge.

Benefits: By ensuring that assignments are completed by the most skilled agents, this method improves the calibre and effectiveness of the work. By utilizing the unique abilities of each agent, it lowers the possibility of mistakes and rework.

2. Market-Based Allocation

Market-based allocation divides up work according to economic theories. Based on their skills and existing workload, agents bid on assignments; the highest bidder is given the assignment.

As an illustration, consider a smart grid system where several energy providers compete to offer power to various regions according to their cost-effectiveness and generation capability. The suppliers who present the best value in terms of both price and dependability are awarded supply contracts by the grid management system.

Advantages: Market-based allocation encourages agent rivalry, which boosts productivity and creativity. As conditions and agent capabilities change, it enables dynamic and flexible task allocation.

3. Auction-Based Allocation

Auction-based allocation involves conducting auctions where agents bid for tasks. The highest bidder wins the task, and the allocation is based on the bidding strategy and available resources.

Example: In autonomous transportation systems, tasks such as picking up and delivering packages are auctioned among a fleet of delivery drones. Each drone bids based on its current location, battery life, and capacity. The drone with the best bid is assigned the delivery task.

Benefits: Auction-based allocation ensures that tasks are assigned to agents that value them the most, leading to efficient resource utilization. It provides a transparent and competitive mechanism for task distribution.

4. Utility-Based Allocation

Utility-based allocation assigns tasks based on the utility or benefitt that an agent can derive from completing a task. Agents evaluate tasks based on their utility functions and prioritize them accordingly.

Example: In healthcare systems, different medical robots may have varying priorities based on patient needs and resource availability. A robot with higher utility for a critical patient intervention task would be allocated that task over less critical tasks.

Benefits: Utility-based allocation aligns task assignments with the overall goals and priorities of the system. It ensures that high-priority and high-impact tasks are given precedence, optimizing system performance.

Conclusion

In multi-agent systems, task allocation and division are essential processes of coordination. In order to divide tasks effectively, difficult activities should be divided into smaller, more manageable tasks using techniques including functional, hierarchical, and spatial decomposition. Assigning these subtasks to the most appropriate agents according to their availability and skills is ensured by task allocation. Robust frameworks for dynamic and effective task distribution are offered by methods such as capability matching, market-based allocation, auction-based allocation, and utility-based allocation. Through the utilization of these techniques, MAS can attain increased degrees of coordination, resulting in improved resilience, adaptability, and performance across a range of applications.

7. Mechanisms of Coordination

In multi-agent systems (MAS), synchronization plays a critical role in coordinating the actions of various agents to guarantee effective and coherent task execution. Appropriate synchronization strategies minimize redundancy, minimize conflicts, and enhance system performance. An introduction to synchronization techniques and an analysis of algorithms for guaranteeing task temporal and spatial alignment are covered in this part.

7.1 Synchronization Techniques

1. Barrier Synchronization

Creating synchronization locations where no agent can move forward until every agent has crossed the barrier is known as barrier synchronization. This method guarantees that at particular points in their duties, all agents are synchronized.

Example: Barrier synchronization is used in a parallel computing environment to guarantee that all processors finish their present computations before proceeding to the next stage. A multi-robot system may also require the robots to synchronize before they can begin a coordinated activity, like lifting a large object collectively.

Advantages: Barrier synchronization guarantees that every agent moves in unison, preventing any agent from moving too quickly ahead of the others and guaranteeing that progress through several stages of a job is coordinated.

2. Token Passing

Token passing is a synchronization method where a token circulates among agents. Only the agent holding the token can perform certain actions or access shared resources. This method ensures orderly access and prevents conflicts.

Example: In a network of autonomous vehicles, a token-passing system can be used to control access to a busy intersection. Only the vehicle holding the token is allowed to enter the intersection, reducing the risk of collisions.

Benefits: Token passing provides a simple and effective way to manage access to shared resources and synchronize actions, ensuring that only one agent performs critical actions at a time.

3. Time-Based Synchronization

Time-based synchronization involves synchronizing agents based on prede￿ned time intervals or schedules. Agents perform specific actions at designated times, ensuring temporal alignment.

Example: In a smart grid, energy production and consumption can be synchronized based on time-of-use pricing schedules. Agents controlling appliances and energy storage systems align their actions to optimize energy usage according to time-based price signals.

Benefits: Time-based synchronization is effective for coordinating actions that depend on temporal factors, such as scheduling tasks in industrial processes or aligning communication intervals in sensor networks.

4. Event-Driven Synchronization

When agents coordinate their actions in response to particular events or triggers, this is known as event-driven synchronization. Agents hold off on starting their tasks until specific things happen.

For instance, in a multi-agent surveillance system, agents (such as drones and cameras) coordinate their actions in response to events that are detected, including motion or strange activity. An event is detected by one agent, which then notifies other agents to take appropriate action.

Advantages: Agents may respond to changes in the environment and coordinate their behaviours based on events occurring in real time thanks to event-driven synchronization, which enables dynamic and responsive coordination.

7.2 Coordination Protocols and Algorithms

The rules and procedures that agents in a multi-agent system (MAS) use to communicate with one another to accomplish coordinated results are defined by coordination protocols. The Contract Net Protocol and auction-based techniques are two popular protocols for coordinating.

1. Contract Net Protocol (CNP)

The Contract Net Protocol (CNP) is a decentralized coordination protocol used for task allocation in MAS. It follows a market-based approach where agents act as managers and contractors. Managers announce tasks, and contractors bid to undertake these tasks.

• Process:

- Announcement: A manager agent broadcasts a task announcement, specifying task requirements and criteria for selection.

- Bidding: Contractor agents evaluate the announcement and submit bids based on their capabilities and current workload.

- Selection: The manager evaluates received bids and selects the most suitable contractor based on predefined criteria (e.g., cost, capability, availability).

- Award: The manager awards the contract to the chosen contractor, and the task execution begins.

• Example: In a manufacturing system, a central controller (manager) may use CNP to allocate production tasks to different robots (contractors). Robots bid for tasks based on their current status and capabilities, and the controller assigns tasks to optimize production efficiency.

• Benefits: CNP promotes flexibility and scalability. It allows dynamic task allocation based on real-time conditions and agent capabilities. The protocol is robust to agent failures, as tasks can be re-bid if necessary.

• Challenges: CNP can involve significant communication overhead, especially in large systems. Ensuring fairness and preventing bid manipulation can also be challenging.

2. Auction-Based Methods

Agents can be assigned tasks or resources through auction mechanisms in auction-based approaches. Agents bid on jobs or resources during auctions, and allocations are decided upon by the results of the auctions.

Types of Auctions:

- First-Price Sealed-Bid Auction: The highest bidder wins and pays the amount of their bid after bidders submit sealed bids.

- Second-Price Sealed-Bid Auction: A sealed bid is submitted (also known as a Vickrey auction). The highest bidder wins, but must pay the amount of the second-highest bid.

- English Auction: The highest bidder wins when bidders publicly place their bids in ascending order.

- Dutch Auction: The starting bid is set high and is lowered until a bidder agrees to the terms.

• As an illustration, delivery jobs can be put up for auction among a fleet of driverless cars in a logistics system. Every car submits a bid depending on its location, capability, and present workload. The auction mechanism ensures that tasks are allocated efficiently, considering the vehicles’ operational constraints.

• Advantages: Auction-based techniques offer an organized and transparent means of allocating resources, encouraging efficiency and competition. They are adaptable to a range of situations and market conditions.

• Difficulties: Bidding at auctions may result in agents manipulating bids in order to obtain an edge. Strong processes are also needed to deal with links, collusion, and changing market conditions.

3. Consensus Algorithms

Even in the face of failures, a collection of agents can reach a consensus through consensus algorithms regarding a shared value or course of action. In distributed systems where coordinated action is necessary, these algorithms are essential.

• Consensus algorithms, for instance, guarantee that all nodes in a blockchain network concur on the ledger’s current state, avoiding double-spending and preserving data integrity.

• Advantages: Consensus methods ensure that the system functions correctly even in the face of errors by offering robustness and fault tolerance. They are necessary for dispersed systems to remain consistent.

• Difficulties: Implementing consensus algorithms can be difficult and involve a lot of communication overhead. It can be difficult to guarantee scalability and performance in big systems.

4. Distributed Constraint Satisfaction Algorithms (DCSA)

Algorithms for distributed constraint satisfaction (DCSA) deal with situations in which several agents must come up with solutions that meet a set of requirements. Each agent cooperates to discover a globally consistent solution, each with its own variables and constraints.

• An illustration of this would be in a multi-agent scheduling system, where each agent is a task with a time limit. DCSA algorithms make sure that all jobs are planned with consideration for dependencies and available resources, hence preventing conflicts.

• Advantages: DCSA offers an organized method for resolving complicated issues with several constraints and agents. Parallelism and distributed problem solving are encouraged by these algorithms.

• Challenges: DCSA can have a considerable computational overhead, particularly when dealing with intricate and large-scale issues. Finding the best solutions and ensuring convergence can be difficult tasks.

Conclusion

In multi-agent systems, coordination protocols and algorithms are necessary to facilitate efficient communication and task execution. Structured frameworks for job distribution are provided by the Contract Net Protocol and auction-based techniques, which encourage efficiency and flexibility. Distributed constraint satisfaction algorithms and consensus algorithms provide logical decision-making and problem-solving, improving system performance and robustness. Through the utilization of these protocols and algorithms, MAS can attain increased degrees of coordination, resulting in better outcomes for a variety of applications.

8. Conflict Resolution and Negotiation

Agents in multi-agent systems (MAS) frequently come across scenarios in which their objectives, course of action, or available resources collide with those of other agents. For collaboration and coordination to run well, effective dispute resolution and negotiation techniques are essential. This section addresses strategies and algorithms for consensus-building and negotiation, as well as different approaches to dispute resolution.

8.1 Methods for Resolving Conflicts Among Agents

1. Mediation and Arbitration

A neutral third-party mediator helps disputing parties communicate and work out a mutually agreeable resolution by acting as a mediator between them. In arbitration, the dispute is settled by a neutral third-party agent rendering a legally enforceable judgment.

Example: In a supply chain network, a mediation agent can help resolve disputes between suppliers over delivery schedules by facilitating talks and helping the parties reach a settlement. A schedule based on contractual agreements may be imposed by an arbitral agent in the event that mediation is unsuccessful.

Benefits: By offering organized and objective conflict resolution processes, mediation and arbitration help to ensure that disagreements are settled quickly and fairly.

2. Game-Theory Approaches

A mathematical framework for simulating and examining agent-to-agent strategic interactions is offered by game theory. Designing systems and tactics where agents’ optimal behaviours result in conflict resolution is the process of applying game theory to resolve conflicts.

As an illustration, agents, or businesses, may employ game-theoretic techniques to settle disputes over pricing and market share in a competitive market. Designing mechanisms with competition in mind guarantees stable and equitable market conditions.

Benefits: The application of game theory ensures that agents’ strategic interactions result in stable and advantageous outcomes by offering a formal and analytical foundation for comprehending and resolving conflicts.

3. Reputation and Trust Systems

Conflicts are managed via reputation and trust systems using feedback and past exchanges. Higher reputation score agents are more trusted, and this trust affects how conflicts are resolved.

Example: Reputation systems assist in resolving disputes between buyers and sellers in online markets. Resolving issues regarding product quality or delivery is more likely to be trusted when dealing with a seller that has a high reputation score.

Benefits: Systems of reputation and trust encourage agents to behave honourably and consistently, which lowers the possibility of disputes and fosters more cordial relationships.

4. Rule-Based Systems

Rule-based systems settle disputes by applying pre-established guidelines and procedures. These regulations are formulated in accordance with domain-specific requirements, legal frameworks, or organizational principles.

As an illustration, conflict resolution rules in network management might dictate how bandwidth is distributed across rival applications in order to avoid congestion and guarantee equitable use.

Advantages: Rule-based systems guarantee that disagreements are settled in accordance with predetermined standards by offering transparent and reliable conflict resolution procedures.

5. Bilateral Negotiation

In a bilateral negotiation, two parties negotiate directly to come at a mutually agreeable solution. Usually, there are several rounds of offers and counteroffers in this process.

Example: In e-commerce, bilateral negotiation between a buyer and a seller may be used to discuss a product’s price. The seller makes a counteroffer after the buyer makes one, and the negotiation process continues until a price is reached.

Benefits: Agents can identify solutions that satisfy their unique preferences and limits through bilateral negotiation, which enables customized and adaptable agreements.

6. Multilateral Negotiation

In order to come to a collective agreement, several agents engage in simultaneous negotiations in multilateral negotiation. This method works well in situations where decisions have an impact on several parties.

For instance, several parties (governments, non-governmental organizations, and business representatives) bargain over agreements on pollution control strategies while creating environmental policies. The talks are facilitated by a mediator to guarantee that all viewpoints are taken into account.

Benefits: By facilitating inclusive decision-making and guaranteeing that all pertinent parties are involved, multilateral negotiation ensures that the final agreement reflects a broad consensus.

7. Automated Negotiation

Algorithms and automated agents are used in automated negotiation to carry out talks on behalf of human stake-holders. This strategy works well in difficult, repetitive, or high-frequency negotiations.

As an illustration, software agents in automated trading systems negotiate the purchase and sale of financial assets. Trading methods are optimized by genetic algorithms using historical data and market conditions.

Benefits: By decreasing the time and effort needed for human engagement and enabling effective and scalable negotiation procedures, automated negotiation speeds up and improves the quality of agreements.

8. Consensus-Building Techniques

Strategies for reaching consensus among agents through cooperative decision-making are referred to as consensus-building strategies. These methods guarantee that the opinions of every agent are taken into account and that the ultimate choice is universally embraced.

Example: To establish consensus on long-term goals and projects, businesses employ the Delphi Method in strategic planning to collect expert viewpoints. Proposed strategies are reviewed by experts and developed and agreed upon after several rounds of discussion.

Benefits: By encouraging inclusivity and shared ownership of decisions, consensus-building strategies guarantee that all agents are dedicated to the predetermined outcomes and lower the risk of further disputes.

Conclusion

In multi-agent systems, negotiation and conflict resolution are essential for efficient coordination. Techniques including rule-based systems, reputation systems, game-theoretic techniques, mediation, arbitration, and rule-based systems offer strong frameworks for settling disputes and guaranteeing harmonious interactions between agents. Agreements and shared objectives can be reached more easily when negotiation tactics, such as automated negotiation, multilateral and bilateral negotiation, and consensus-building procedures, are employed. By using these strategies, MAS can increase their capacity for cooperation, lessen conflict, and boost the effectiveness and performance of the system as a whole.

9. Challenges in Integrating Diverse Agents and Systems

A key component of multi-agent systems (MAS) is interoperability, which refers to the capacity of various agents and systems to collaborate effectively. Attaining interoperability guarantees that agents, regardless of their design and implementation by various companies or for different objectives, can cooperate, coordinate, and communicate efficiently. This section addresses ways to achieve interoperability in heterogeneous environments and examines the difficulties associated with integrating disparate agents and systems.

1. Heterogeneous Architectures

It can be difficult to guarantee compatibility and fluid interaction amongst agents because they may have been developed using different hardware and software architectures.

Impact: Differences in programming languages, operating systems, and communication protocols might cause integration problems, necessitating a lot of work to reach compatibility.

Example: It can be challenging to combine devices from multiple manufacturers into a single, cohesive system in a smart home ecosystem because they may use different protocols and standards.

2. Diverse Communication Protocols

Different communication protocols may be used by agents, which may make it more difficult for them to successfully communicate information.

Impact: Incompatible protocols may cause complicated translation methods, data loss, or communication break-downs.

For instance, in a multi-agent healthcare system, interoperability may be hampered by the use of disparate data interchange formats (such as HL7 or DICOM) by software programs and medical equipment.

3. Inconsistent Data Formats

Data integration and sharing may be difficult since agents produce and interpret data in a variety of formats.

Impact: Data transformation or standardization procedures are necessary due to inconsistent data formats, which raises complexity and error-proneness.

For instance, in environmental monitoring, data output from sensors made by several manufacturers may differ in terms of units or formats, requiring data conversion in order to allow for uniform analysis.

4. Semantic Differences

Agents may interpret and represent information differently, leading to semantic inconsistencies.

Impact: Semantic differences can result in misunderstandings, misinterpretations, and incorrect decisions.

Example: In an autonomous vehicle system, different agents may use varying terminologies and ontologies for road conditions, requiring semantic alignment for effective communication.

5. Security and Privacy Concerns

Integrating agents from diverse sources may raise security and privacy issues, as different systems may have varying levels of security measures and privacy policies.

Impact: Ensuring secure and private communication between agents becomes more complex, requiring robust encryption, authentication, and access control mechanisms.

Example: In a financial multi-agent system, integrating agents from different banks involves ensuring secure trans-actions and protecting sensitive customer information.

10. Conclusion

For multi-agent systems to operate effectively, interoperability and integration are crucial, especially in heterogeneous contexts where agents from many sources need to collaborate. Integration attempts might be complicated by issues including inconsistent data formats, heterogeneous architectures, different communication protocols, semantic inconsistencies, and security problems. Nonetheless, these issues can be resolved and smooth integration guaranteed by middleware solutions, data standardization, ontologies, interoperability frameworks, standardized communication protocols, and strong security measures. By putting these strategies into practice, MAS can become more interoperable, allowing a variety of agents to work together and coordinate efficiently, which will improve system performance and lead to the desired results.
